This article by Nena Barlow originally appeared on fourwheeler.com.

When I first heard there would be a mild-hybrid motor option in the JL Wrangler, I was curious, but not convinced that anything but a diesel would tempt me away from the tried-and-true 3.6L V-6. I reluctantly ordered two for our fleet, just to try them out. First to arrive was a pretty Hella Yella Unlimited Rubicon that we named MaryAnn.

Though I can neither confirm nor deny that there was drag racing between the 2.0L turbo eTorque Wrangler and one of our 3.6L V-6 Wranglers, what I can say is that the 2.0L turbo is noticeably faster off the line and in the quarter-mile than the V-6 in the JL Wrangler Unlimited Rubicon.

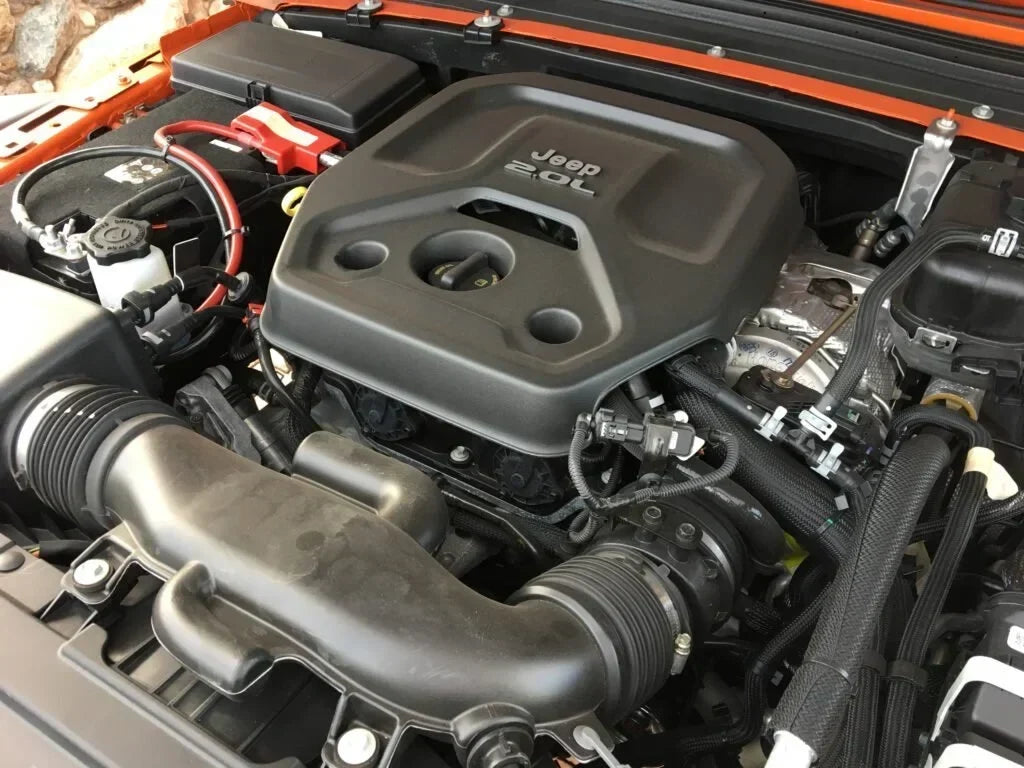

The 2.0L Turbo eTorque makes better horsepower and torque than the 3.6L V-6, but many people don’t fully understand the significance of the eTorque—the electric motor part of the equation that earns it the mild-hybrid title.

It gives you an extra 71 lb-ft of torque from 0 rpm up to about 1,500 rpm, where the 3.6L is just starting to get its legs under it. The 2.0L turbo eTorque is also noticeably smoother in the auto stop/start feature (which can be easily disabled) than on the 3.6L V- 6, and the new 48V electric motor makes the restart unnoticeable. And when I found out that stop/start can save you up to a half gallon of gas per hour, I stopped pushing the disable button.

I fully expected to want to re-gear the 2.0L turbo eTorque on our Unlimited Rubicon named Ginger, given the smaller displacement. Ginger rides on a 4-inch TeraFlex ST4 suspension kit and a set of 37-inch Falken Wildpeak Mud-Terrains, and (to my amazement) she runs like the stock 33s are still on, puts you back in the seat, and finds Eighth gear at highway speed. So far we have found that no re-gear is necessary. With the eTorque giving you torque from 0 to 1,500 rpm, there is also smooth power throughout the tall rocks, even pushing the 37s. A few big selling points of the eTorque system are higher fuel economy, smoother stop/start, and better shifting. I was impressed by its ability to push 37s without re-gearing, zip down the highway, crawl big rocks, and still get 18 mpg.

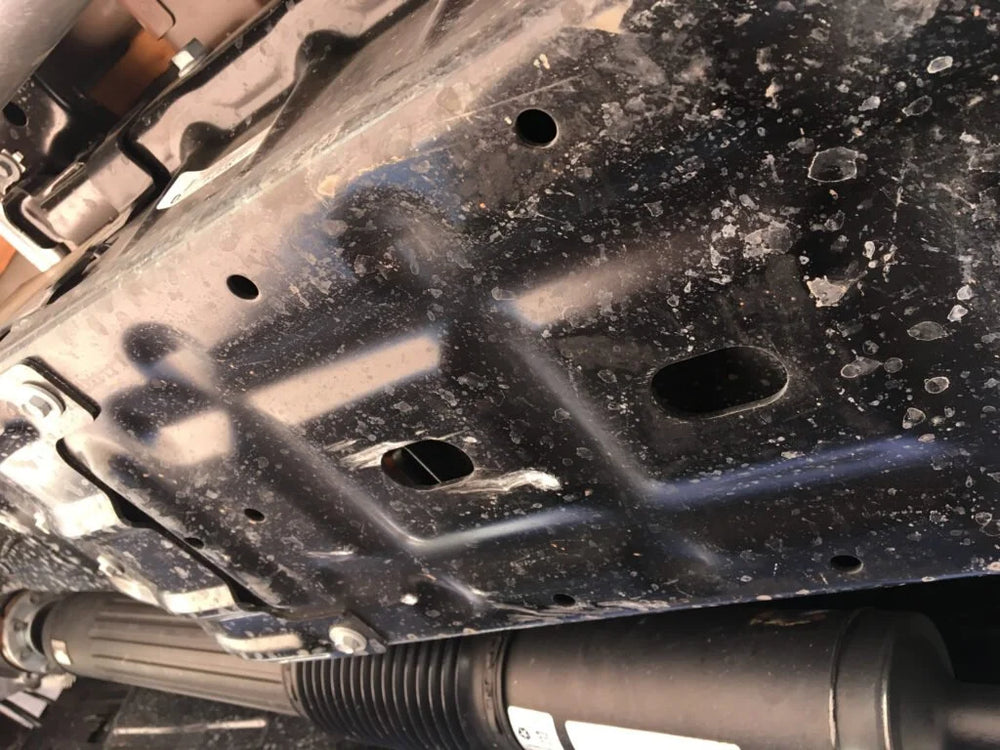

Close-up of a black metal undercarriage, showcasing a protective skid plate that protects the large battery of a hybrid Jeep.
One thing we were worried about in the undercarriage is that rather large and expensive battery pack. Careful inspection reveals a stout skid plate with about a 3cm gap between the plate and the actual battery housing just in case you do hit it with gusto. Engineers also knew that this battery would be subject to dust, mud and water fording, and is sealed accordingly.

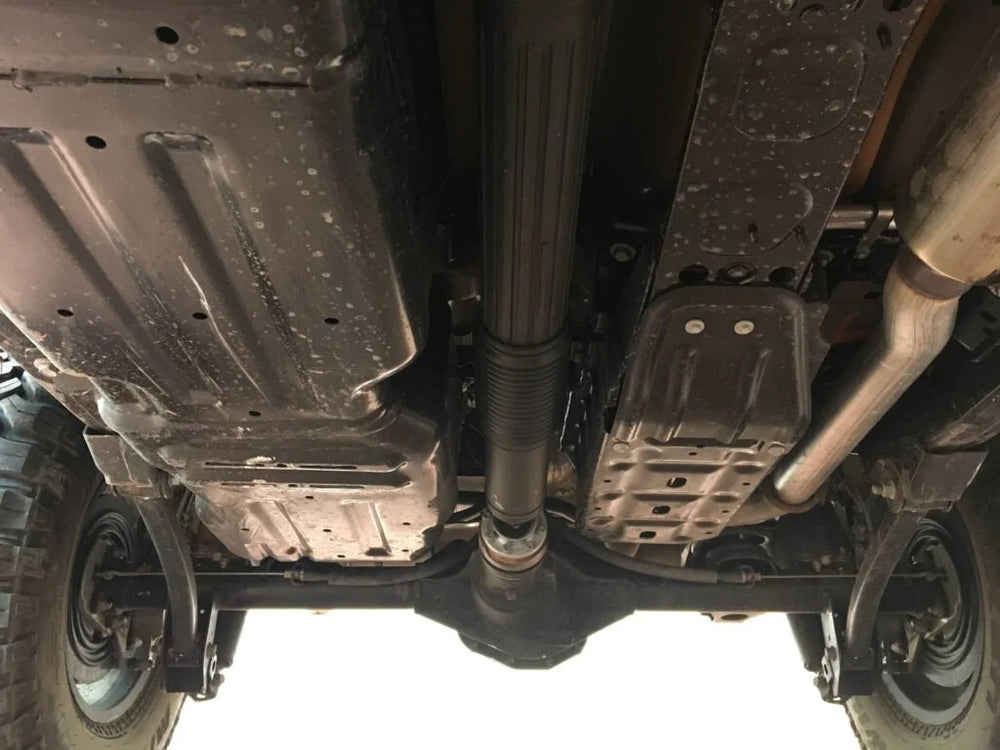

Undercarriage view of a vehicle showing the exhaust system, rear driveshaft, differential, and protective underbody panels.
Not only did we worry about rock impact, but also with rubbing the rear driveshaft when the Jeep is flexing its suspension back and forth. Rubbing the gas tank is an issue we have been dealing with since the JK, but now we have something on both sides to deal with.

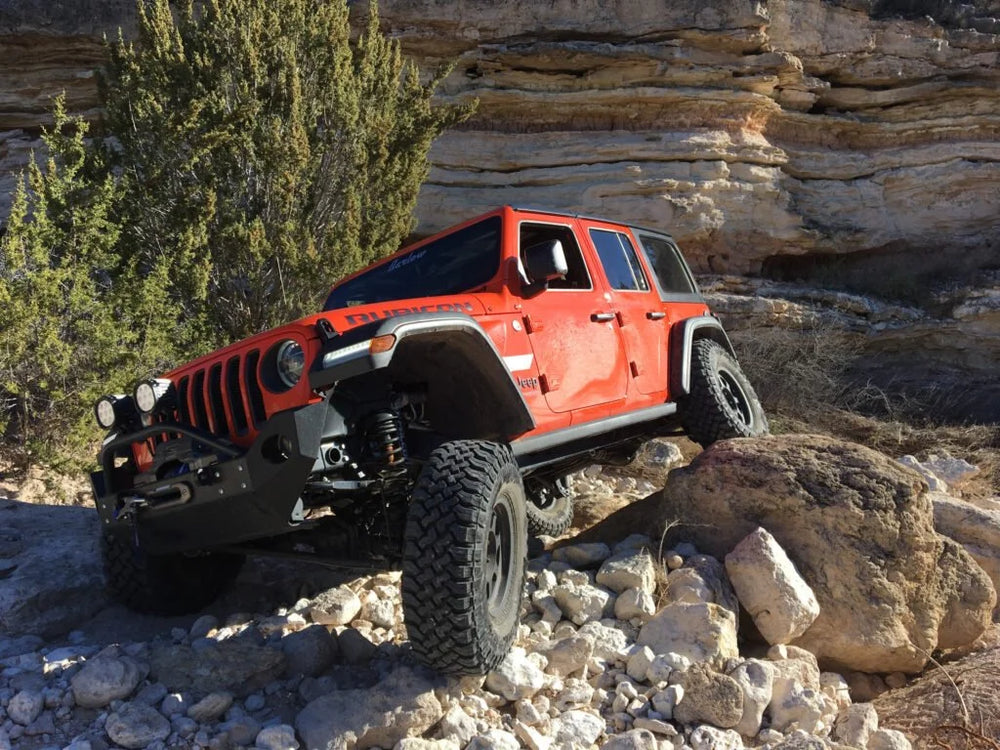

A red Jeep with a black front bumper and all terrain tires climbs a rocky incline in a natural desert canyon environment.
Suspension installation is a success when you can fully articulate your suspension and not rub or bind anything.

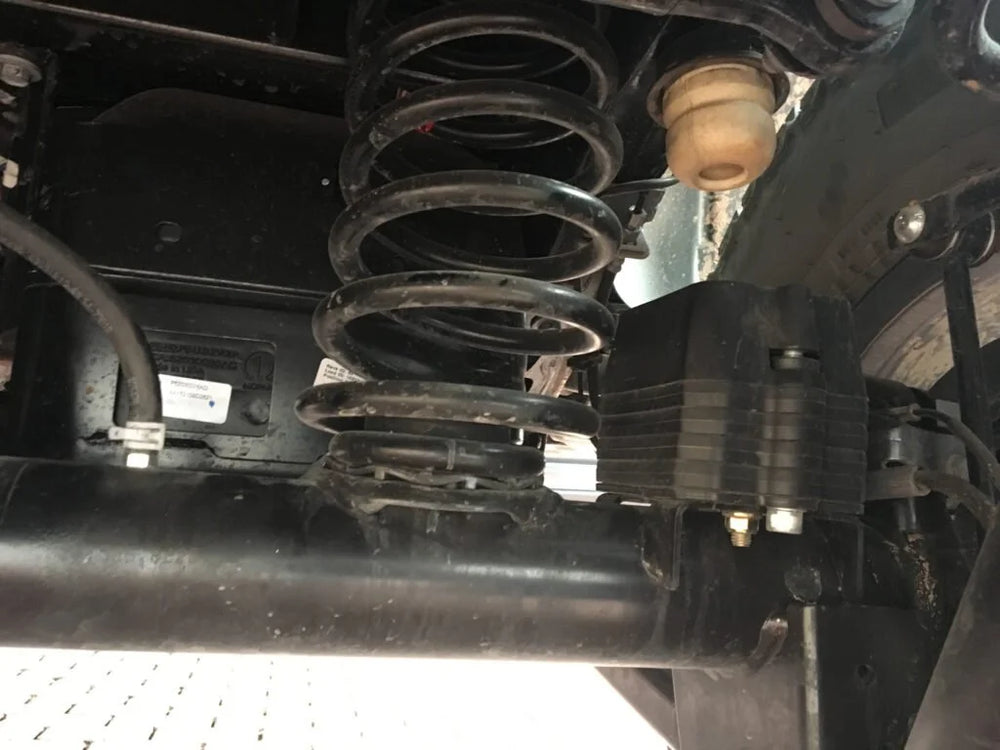

Close-up of a vehicle's undercarriage, focusing on a black coil spring, suspension components and bump stop.
The Teraflex ST4 suspension kit comes with adjustable rear bumpstops. After also moving the battery pack and gas tank out about ¼-inch, these bumpstops were just enough to keep the driveshaft from hitting the gas tank and the battery pack.

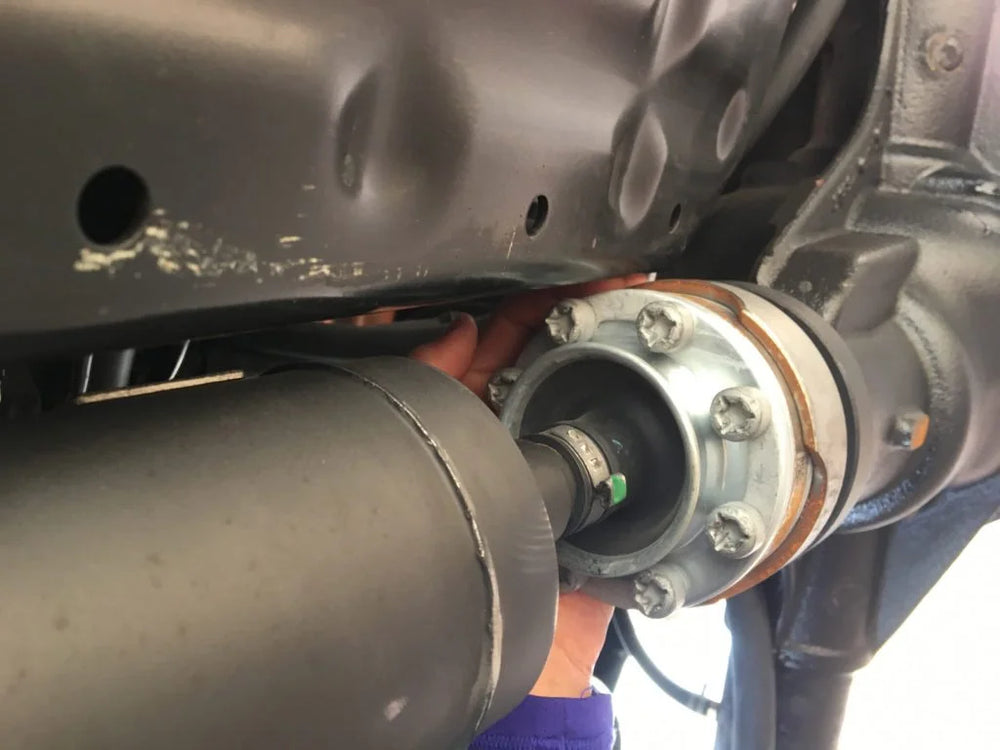

Close-up of the undercarriage of a Jeep, specifically the vehicle's rear differential housing, showing the tight clearance between critical vehicle systems.
That is my finger just squeaking through the tiny amount of space between the driveshaft and the battery pack while the Jeep is at full flex, compressed on the driver rear tire. Plenty of room!

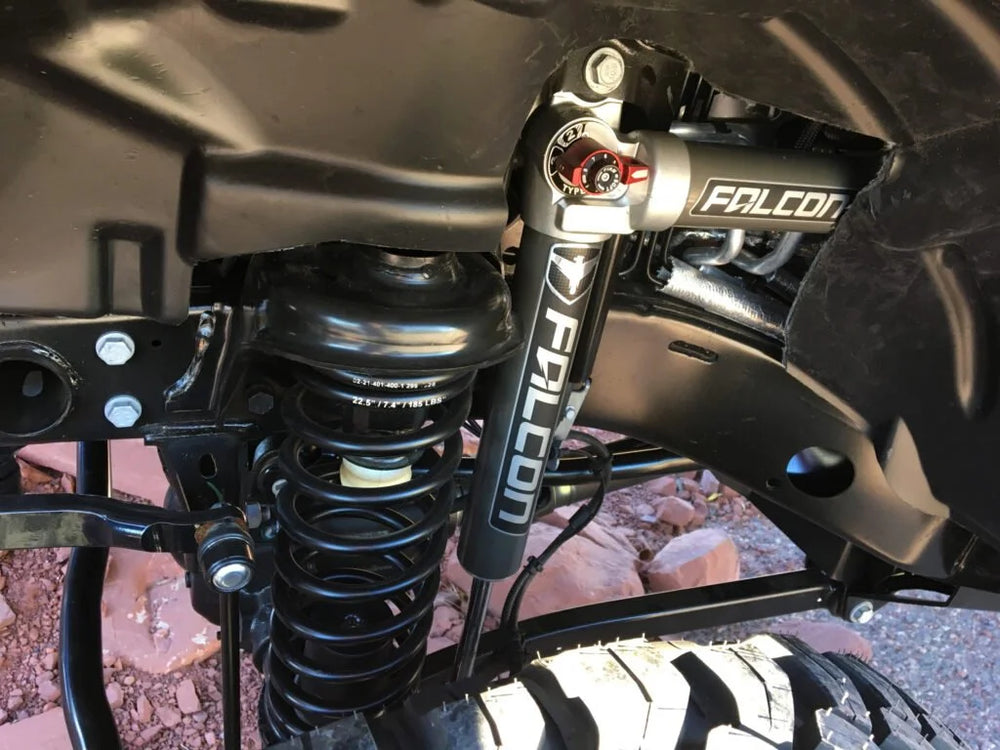

Close-up of a black and silver Falcon shocks, coil spring and other suspension components.
Plenty of room in the wheel wells for the 3.3 Falcon Fast-Adjust shocks.

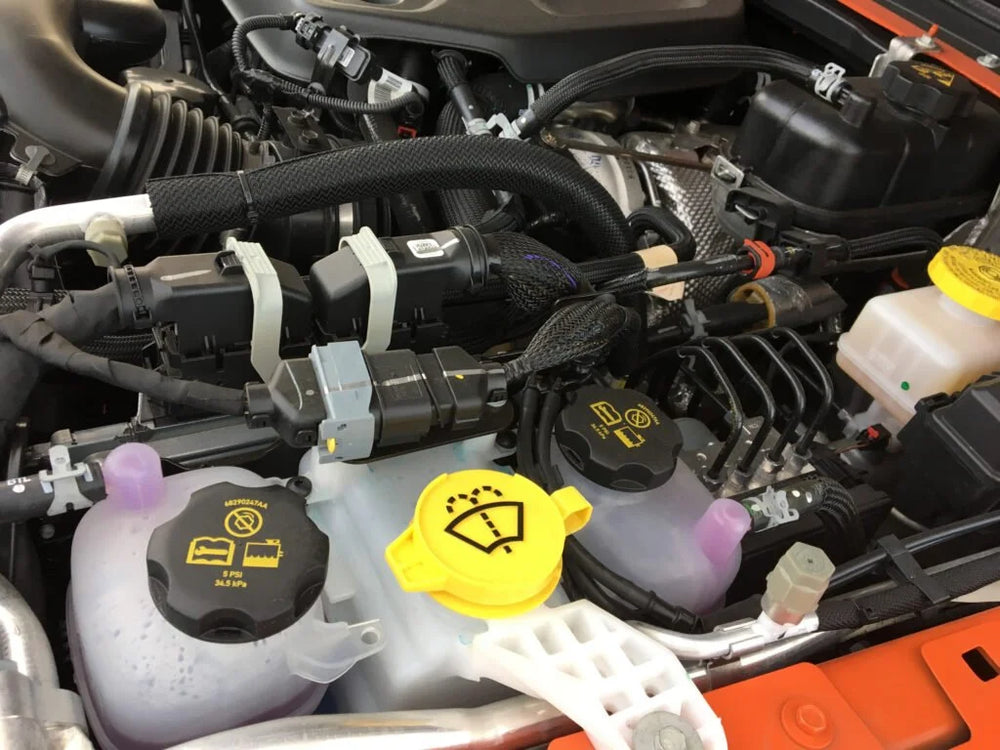

Close-up of a car engine bay showing various fluid reservoirs, hoses, and caps, including a prominent yellow windshield washer fluid cap.
The JL’s 2.0-liter turbo eTorque has three coolant reservoirs, hence three independent cooling systems: motor-generator unit coolant reservoir in bottom left, turbo coolant reservoir in bottom center, and traditional engine coolant reservoir in top right. And not just any coolant—it must be Organic Additive Technology (OAT), conforming to FCA specifications.

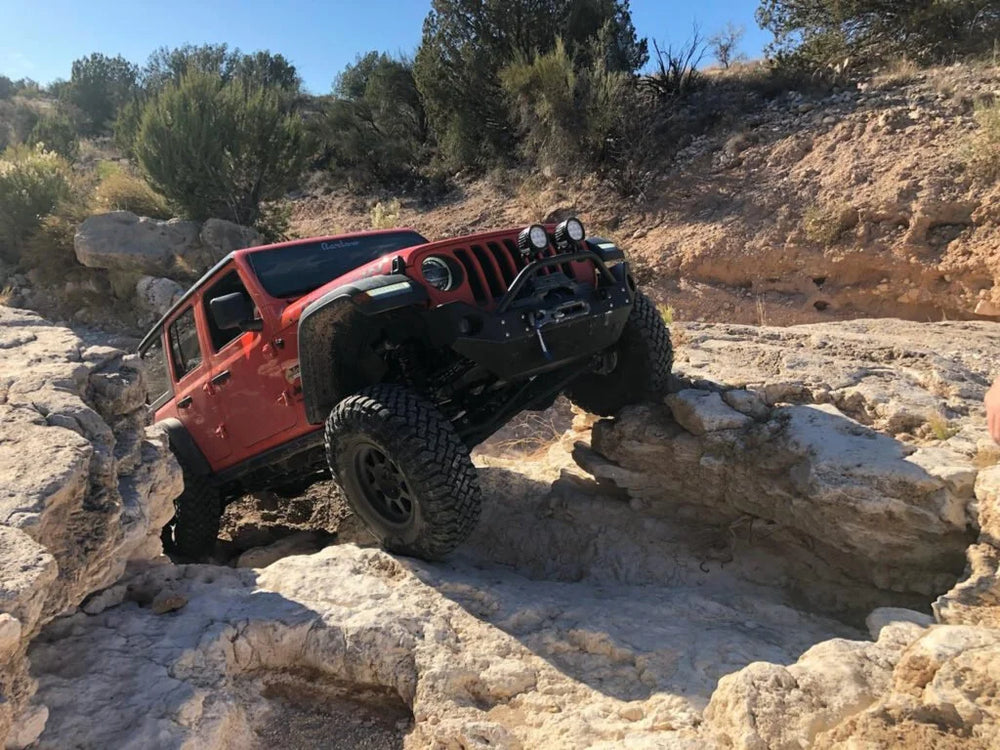

A red Jeep Wrangler with a black front bumper and all terrain tires climbs over large rocks in a rocky desert canyon.
Some gratuitous rock crawling shots. The eTorque provides smooth and steady power, no turbo lag when climbing over the big rocks. Photo by Sierra Palmer.

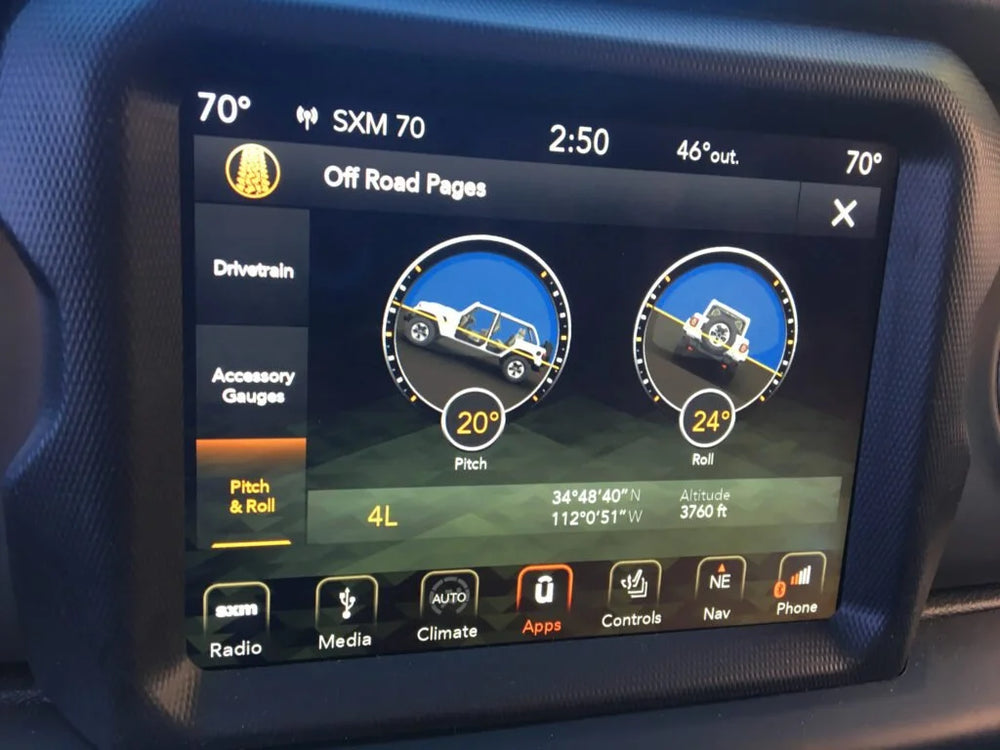

Close-up of a car infotainment touchscreen display showing vehicle settings and dashboard graphics, mounted inside a dark vehicle console.
One of the cool features of the new JL is the offroad pages, which can alternate from pitch and roll, to drivetrain status, to a 5-gauge cluster.
An orange Jeep Wrangler Rubicon parked in deep snow with its headlights on, set against a snowy mountain landscape.
Wheeling through powder snow and on icy roads was no worry with the smooth power and shifting of the eTorque.
